Pen Display DTK-1660E

32 sold

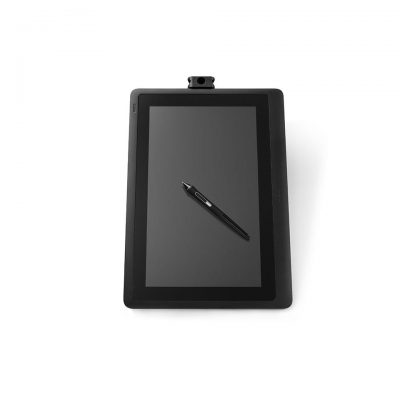

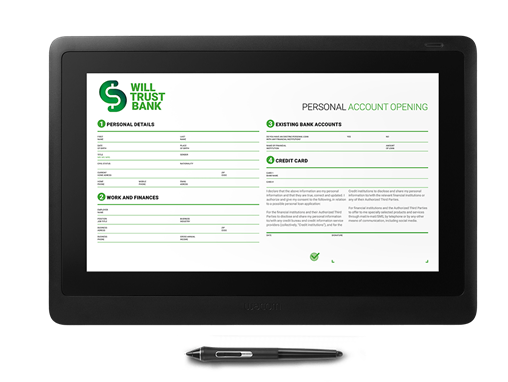

  • Optimal comfort: Easy document viewing via the 15.6” Full HD display with portrait/landscape mode
  • Secure signing: Encryption and a unique hardware ID to help ensure secure, verifiable document signing

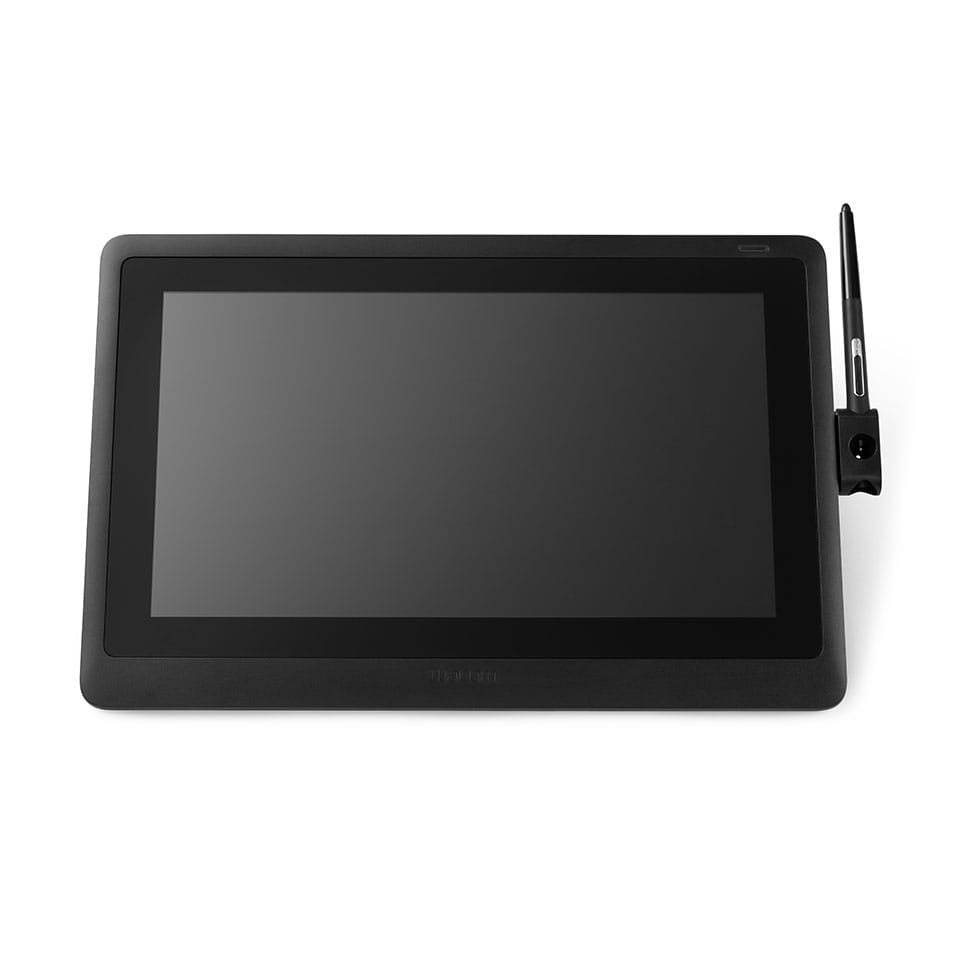

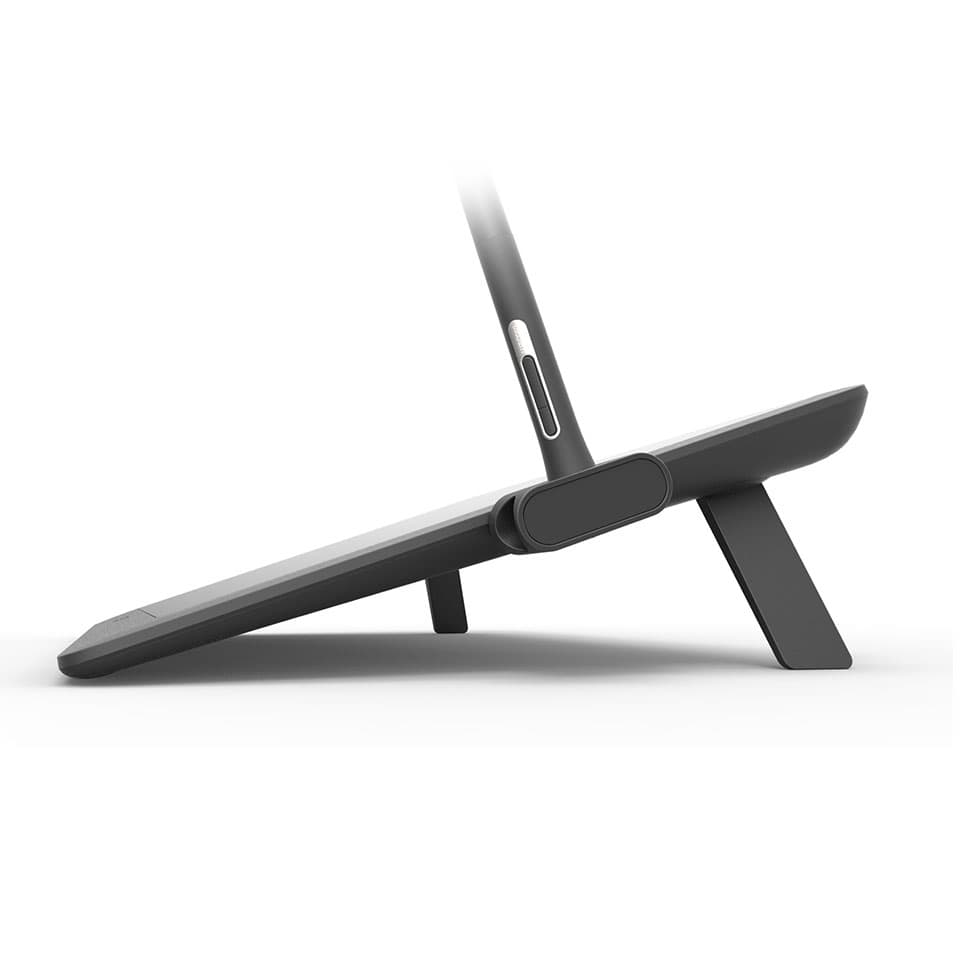

  • Clutter-free footprint: Slim, sleek design, 3-in-1 cable for power, HDMI and USB, and innovative magnetic pen holder

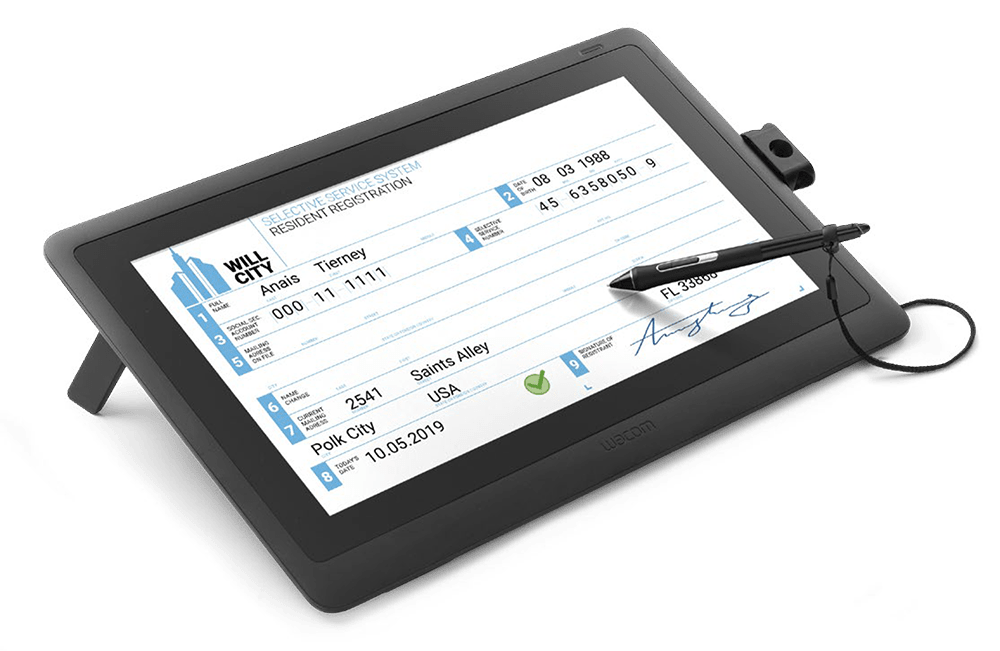

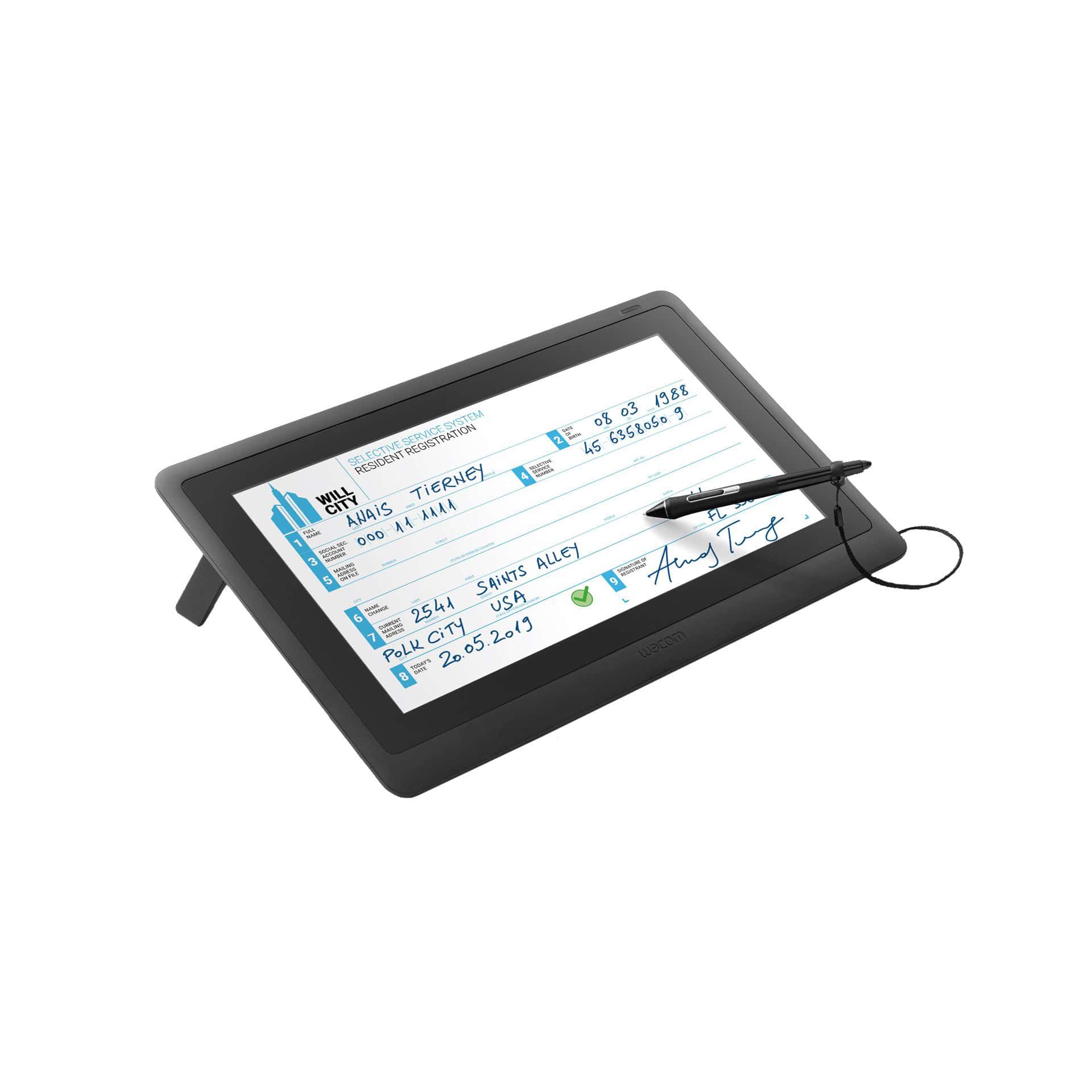

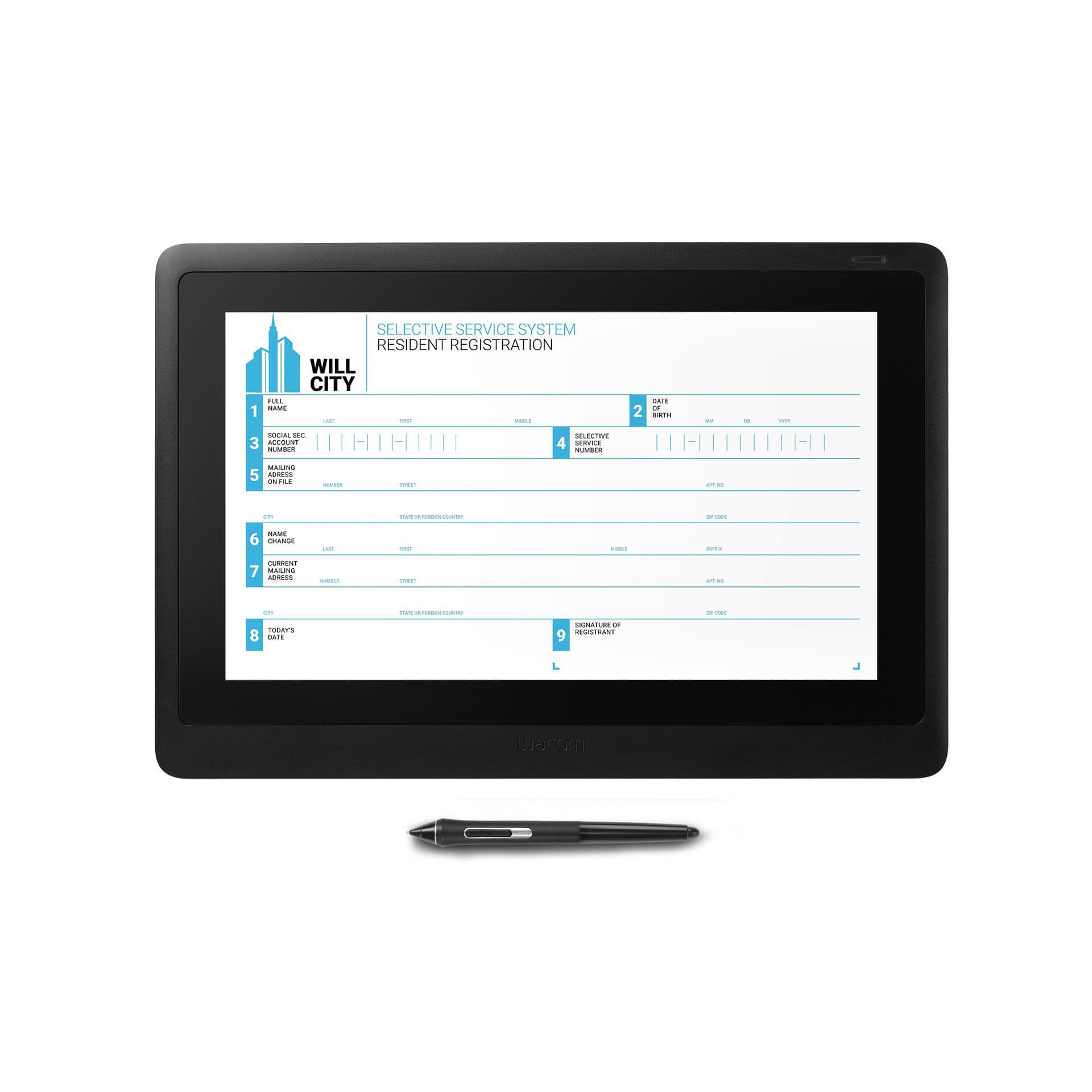

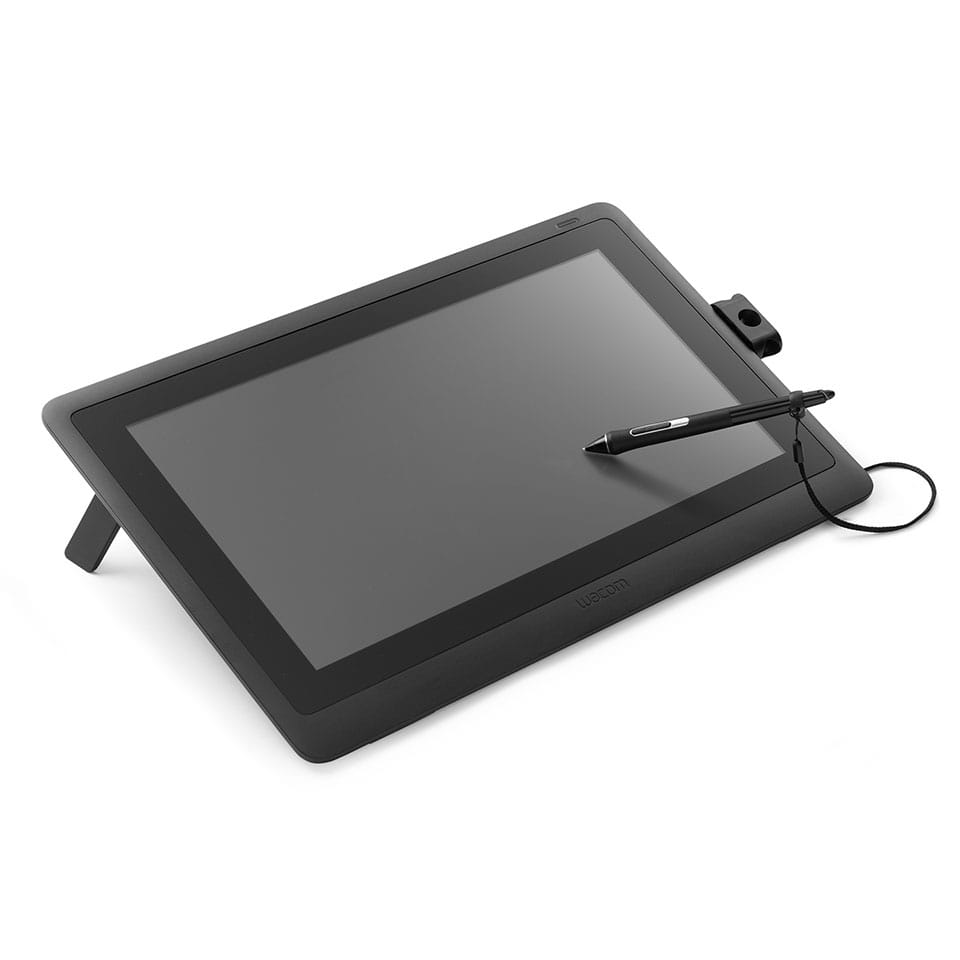

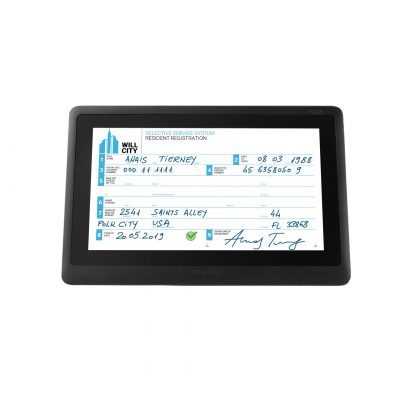

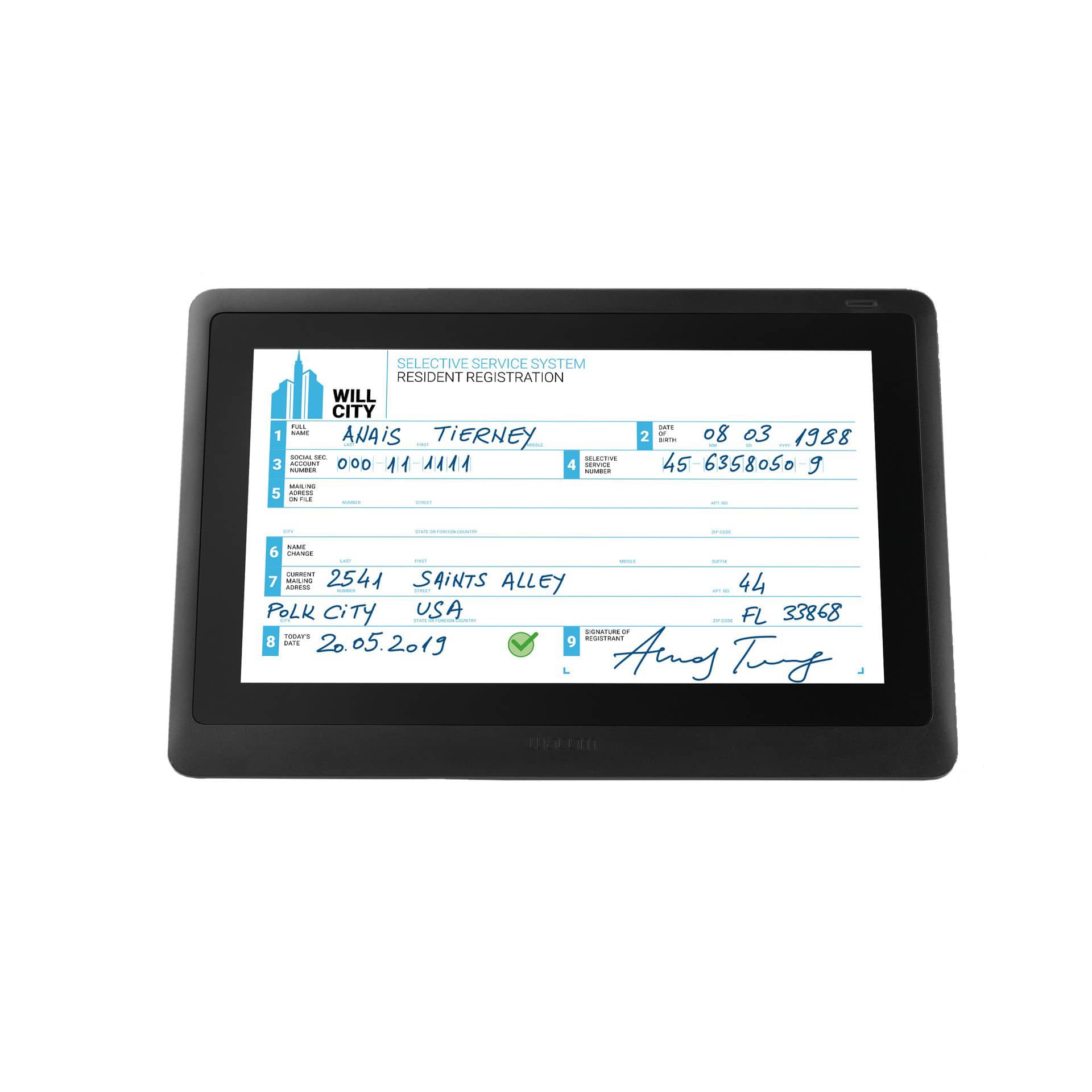

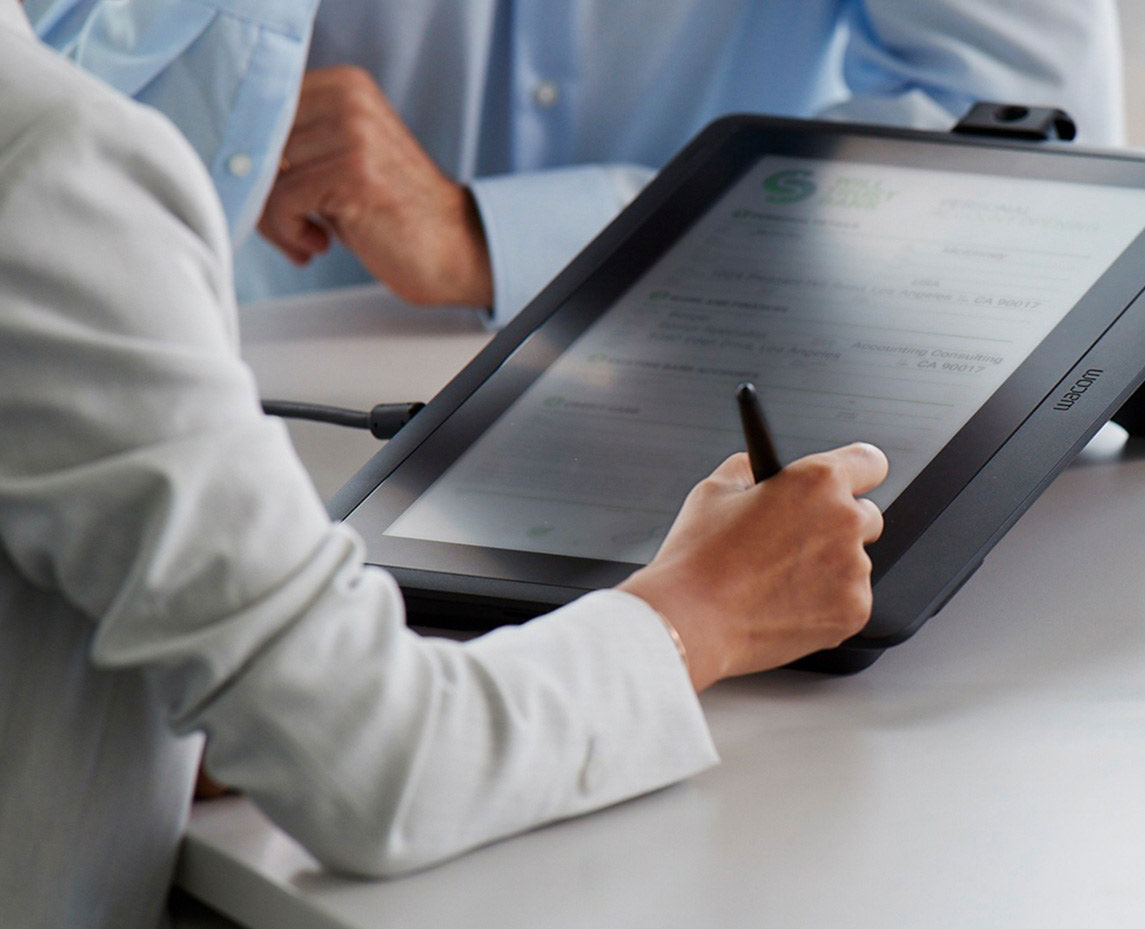

Featuring a 15.6″ Full HD resolution LCD display, the Wacom DTK-1660E Pen Display is a premium pen display that enables exceptionally comfortable viewing and signing of full-sized documents in portrait or landscape mode. Its outstanding design combines a modern, slim look with state-of-the-art encryption, biometric signature capture, and 8,000 levels of pressure sensitivity for the most familiar signing and writing experience.

These attributes make the Wacom DTK-1660E ideal for a variety of use cases across financial services, education, healthcare, hospitality, telecoms and POS retail environments.

Pen Display DTK-1660E
Pen Display DTK-1660E

Key Features and Benefits

  • Outstanding performance and reliability through proven, premium and market-leading digital pen display technology
  • Superb ease of use with no shrinking/scrolling when viewing and signing full-screen A4 & letter-sized documents
  • Low maintenance and long-life thanks to the highly durable, scratch-resistant writing surface
  • Lower document fraud risk through enhanced security and verification with state-of-the-art AES 256 / RSA 2048 encryption
  • Flexible and comfortable usage with the ability to switch between landscape and portrait mode to view and sign A4/letter size digital documents within business workflows
  • Enhanced customer satisfaction through the premium quality and highly intuitive pen and paper-like user experience
  • Clean, clutter-free workspace with simplified cable management through the 3-in-1 connector cable

General Specifications

  • Dimensions Dimensions (W x H x D, excluding stand) 16.61 x 11.22 x 0.96 inches / 422 x 285 x 24.5 mm
  • Weight Weight (including stand) 4.2 lbs / 1.9 kg

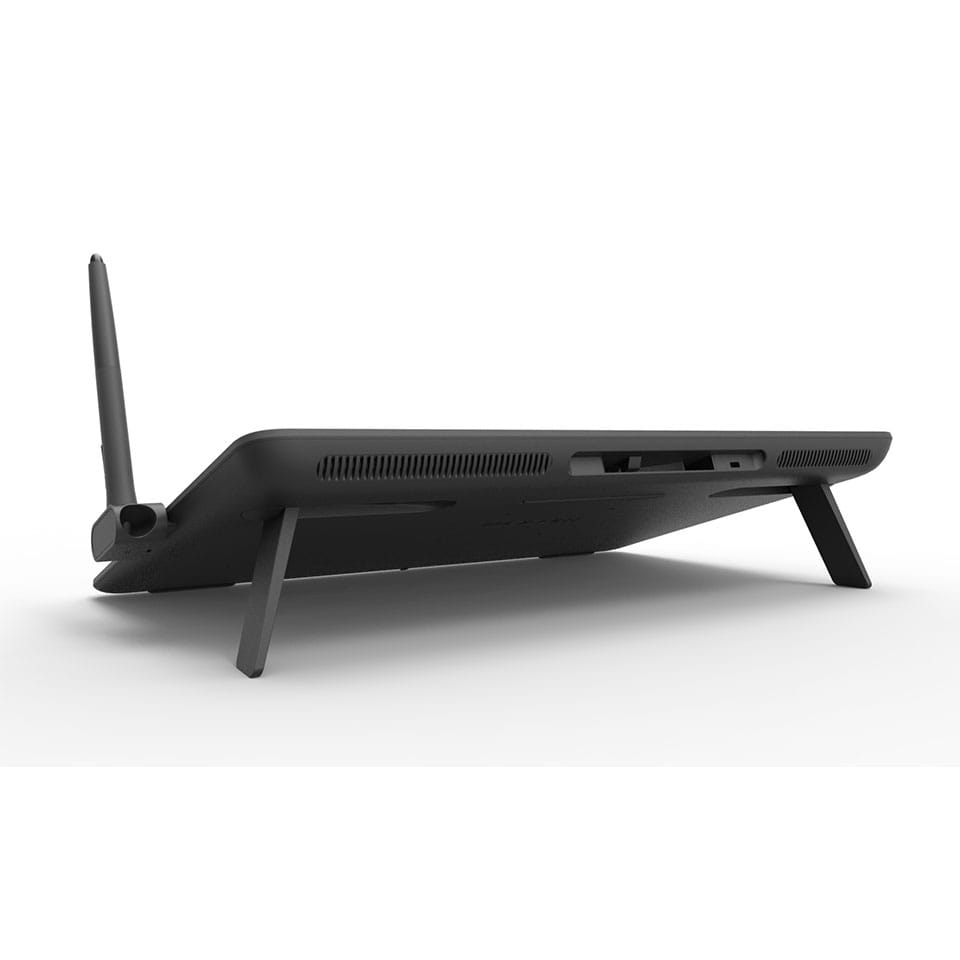

  • Main body colorStand inclination 19° integrated stand
  • Power supplyPower supply AC 100 ~ 240 V, 50/60 Hz
  • Power consumptionPower consumption 27 W or lower, Power Save mode: 0.5 W or lower, Power OFF mode: 0.5W or lower
  • Communication interfaceCommunication interface USB 2.0
  • Programmable buttonsProgrammable buttons NA
  • Supported operating systemsSupported operating systemsWindows 10 / 8.1 / 7 (32-bit, 64-bit), Mac OSX 10.11 or later

Pad and Pen

  • Reading Technology Technology Electromagenetic Resonance (EMR)
  • Screen dimensions Screen dimensions 15.6” diagonal (13.55 x 7.62 inches / 344.2 x 193.6 mm)
  • Coordinate resolution Coordinate resolution 5080 lpi
  • Coordinate accuracy Coordinate accuracy ±0.02 inches / ±0.5 mm (center)
  • Report rate Report rate 187 points per second
  • Pressure levels Pressure levels 8192
  • Encryption Encryption AES 256 / RSA 2048
  • Reading height Reading height 0.2 inches / 5 mm or more (center)

LCD Screen

  • Display Type LCD Panel Type IPS
  • Touch Input Touch Input No
  • Cover glass surfaceCover glass surface Tempered Glass with AG film
  • Aspect ratio Aspect ratio 16:9
  • Native resolution Native resolution 1920 x 1080 pixels
  • Video inputVideo input HDMI
  • Viewing anglesViewing angles 176° / 176°
  • ColoursColours 16.7M colors
  • LuminanceLuminance (brightness) 0.13 cd/in² / 210 cd/m² (typical)
  • Contrast ratioContrast ratio 1000:1 (typical)
  • Response timeResponse time 25 ms (typical)


  • Pen storage Pen storage Pen holder
  • Security lock slot Security lock slot Yes, Kensington
  • Mounting system Mounting system VESA 2.95 inches / 75 mm
  • Signature software compatability Signature software compatability Compatible with signature / eSign software and Wacom sign pro PDF; C++, .NET and Java SDK/API available for developers
  • Drivers Drivers Wacom driver required, SDK/API available for developers
  • Warranty Warranty 3 years
  • Package content Package content DTK-1660E, Wacom Pro Pen 2, Pen stand with replacement nibs and nib removal tool, Pen tether, 3-in-1 cable, AC power adapter, Power cable, Quick Start Guide, IPI
Pen Display DTK-1660E

Additional Information

Weight1900 g
Dimensions24.5 × 422 × 285 mm
