Pen Display DTK-2451
Request a Callback
Contact us for competitive discounts on bulk quantities Learn more...

Pen Display DTK-2451

22 sold



  • Flexible display options: Support for both analogue and digital connections with DVI video in/out

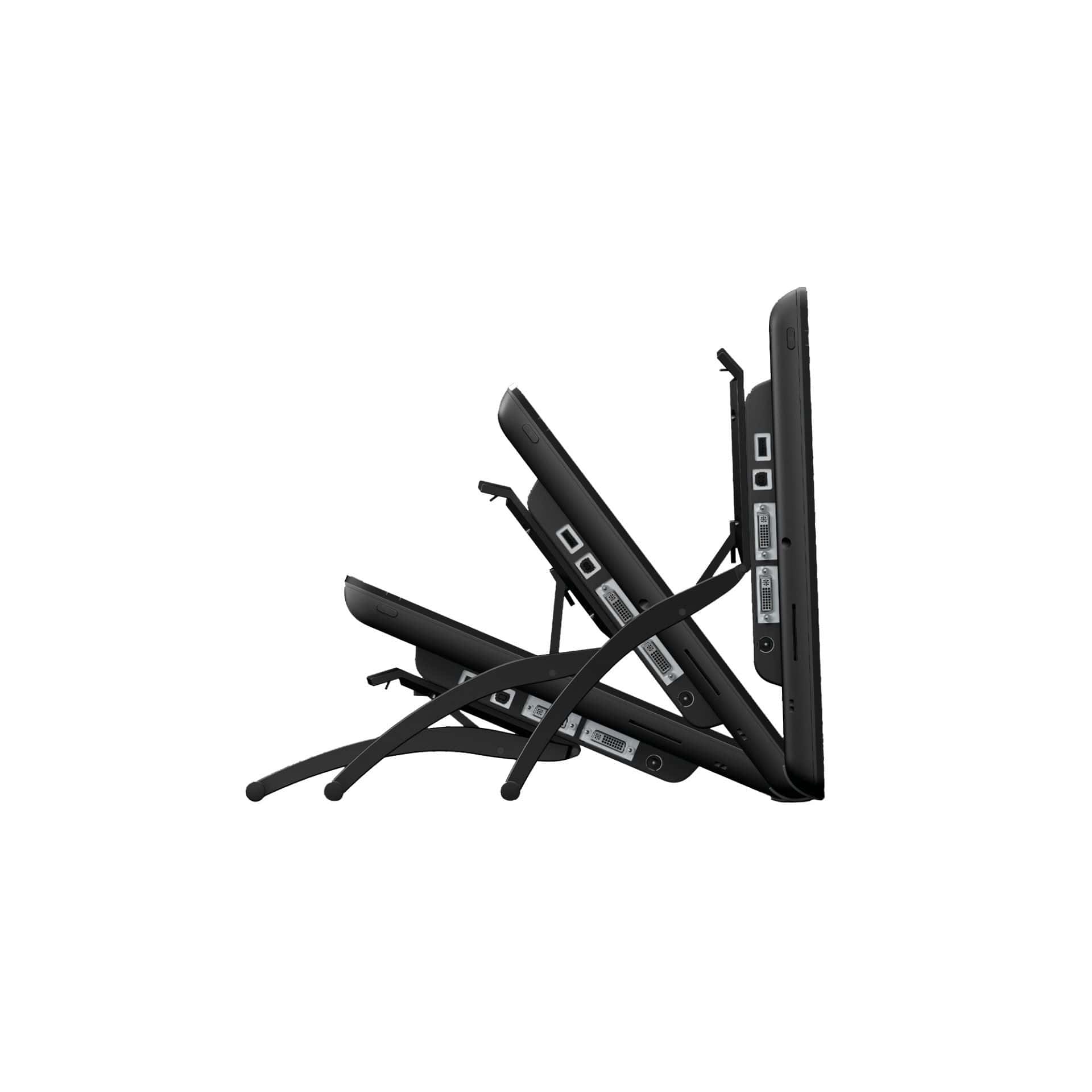

  • Fully adjustable: Flexibility to fit any working environment with an adjustable stand that supports multiple angles
  • Multi-touch enabled: Intuitive navigation and support for common gestures through multi-touch functionality (DTH-2452 only)

Featuring 24-inch, full HD displays, the DTK-2451 and DTH-2452 are Wacom’s large pen displays for business customers. The generous active area provides a comfortable work surface for writing and signing eDocuments or annotating directly on presentations.

And with 2048 levels of pen pressure, users can enjoy precise drawing, writing, and annotating, plus enhanced biometric signature capture. The DTH-2452’s multi-touch screen also supports touch gestures and navigation.

Pen Display DTK-2451
Pen Display DTK-2451

Key Features and Benefits

  • Optimal user comfort with the large 23.8” colour LCD panel that offers a generous working area and a wide viewing angle
  • Biometrically-accurate input precision with 2048 levels of digital pen pressure for precise drawing, writing and annotating, plus enhanced biometric signature capture
  • Flexible display options with support for both analogue and digital connections with DVI-I passthrough connections and HDCP compliance
  • Versatile usage in any working environment with a flexible stand, allowing the device to be used at multiple angles, and built-in standard VESA mounts to allow the use of 3rd-party stands
  • Intuitive navigation with support for common gestures through multi-touch functionality (DTH-2452 only)
  • Ease of use is enhanced with 4 user-assignable ExpressKeys to access common functions or tools, plus an integrated USB port to provide easy access to users’ favourite USB devices

General Specifications

  • Dimensions Dimensions (W x H x D, excluding stand) 23.66 x 14 x 1.8 inches / 601 x 356 x 46 mm
  • Weight Weight (including stand) 15.9 lbs / 7.2 kg (without stand)
  • Main body colorStand inclination 11° – 73° adjustable stand
  • Power supplyPower supply AC 100 ~ 240V, 50/60 Hz
  • Power consumptionPower consumption 45 W or lower, Power Save mode: 0.5 W or lower, Power OFF mode: 0.5 W or lower
  • Communication interfaceCommunication interface USB
  • Programmable buttonsProgrammable buttons 4
  • Supported operating systemsSupported operating systems Windows 10 / 8.1 / 7 (32-bit, 64-bit) Mac OSX 10.11 or later

Pad and Pen

  • Reading Technology Reading Technology Electromagenetic Resonance (EMR)
  • Active area size Active area size 23.8“ diagonal (20,75 x 11.65 inches / 527 x 296 mm)
  • Coordinate resolution Coordinate resolution 2540 lpi
  • Coordinate accuracy Coordinate accuracy ±0.02 inches / ±0.5 mm (center) for DTK-2451, ±0.04 inches / ±1.0 mm (center) for DTH-2452
  • Report rate Report rate 187 points per second for DTK-2451, 100 points per second for DTH-2452
  • Pressure levels Pressure levels 2048
  • Encryption Encryption AES 256 / RSA 2048
  • Reading height Reading height 0.4 inches / 10 mm or more (center)

LCD Screen

  • Display Type LCD Panel Type VA
  • Touch Input Touch Input DTK-2451: No / DTH-2452: Yes
  • Cover glass surfaceCover glass surface Tempered AG etched glass
  • Aspect ratio Aspect ratio 16:9
  • Native resolution Native resolution 1920 x 1080 pixels
  • Video inputVideo input DVI-I
  • Viewing anglesViewing angles (horizontal/vertical) 178° / 178°
  • ColoursColours 16.7M colors
  • LuminanceLuminance (brightness) 0.13 cd/in² / 210 cd/m² (typical)
  • Contrast ratioContrast ratio 1000:1 (typical)
  • Response timeResponse time 16 ms (typical)


  • Pen storage Pen storage Pen holder
  • Security lock slot Security lock slot Yes, Kensington
  • Mounting system Mounting system VESA 3.93 x 7.87 inches / 100 x 200 mm
  • Signature software compatability Signature software compatability Compatible with signature / eSign software and Wacom sign pro PDF; C++, .NET and Java SDK/API available for developers
  • Drivers Drivers Wacom driver required, SDK/API available for developers
  • Package content Package content DTK-2451 or DTH-2452, adjustable display stand, pen with eraser, pen holder, attachment, pen tether, warranty card, QSG, IPI, DVI-D cable, DVI-I to VGA Cable, USB cable, AC adapter, power cable
Pen Display DTK-2451

Additional Information

Weight7200 g
Dimensions46 × 601 × 356 mm
