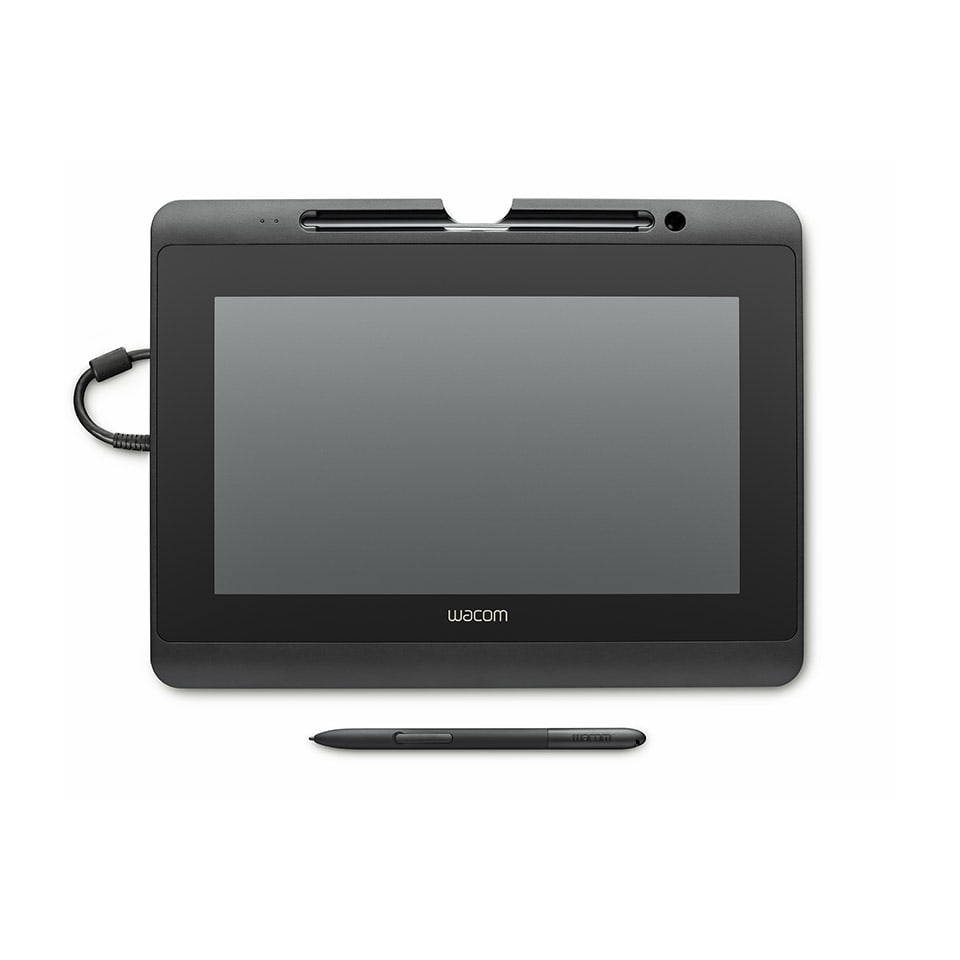

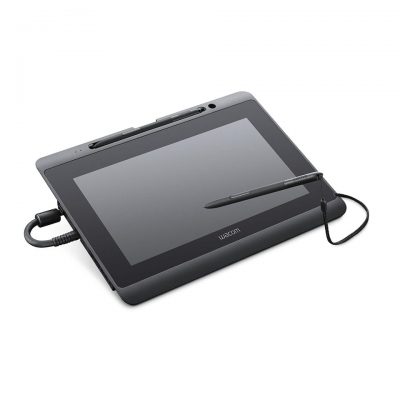

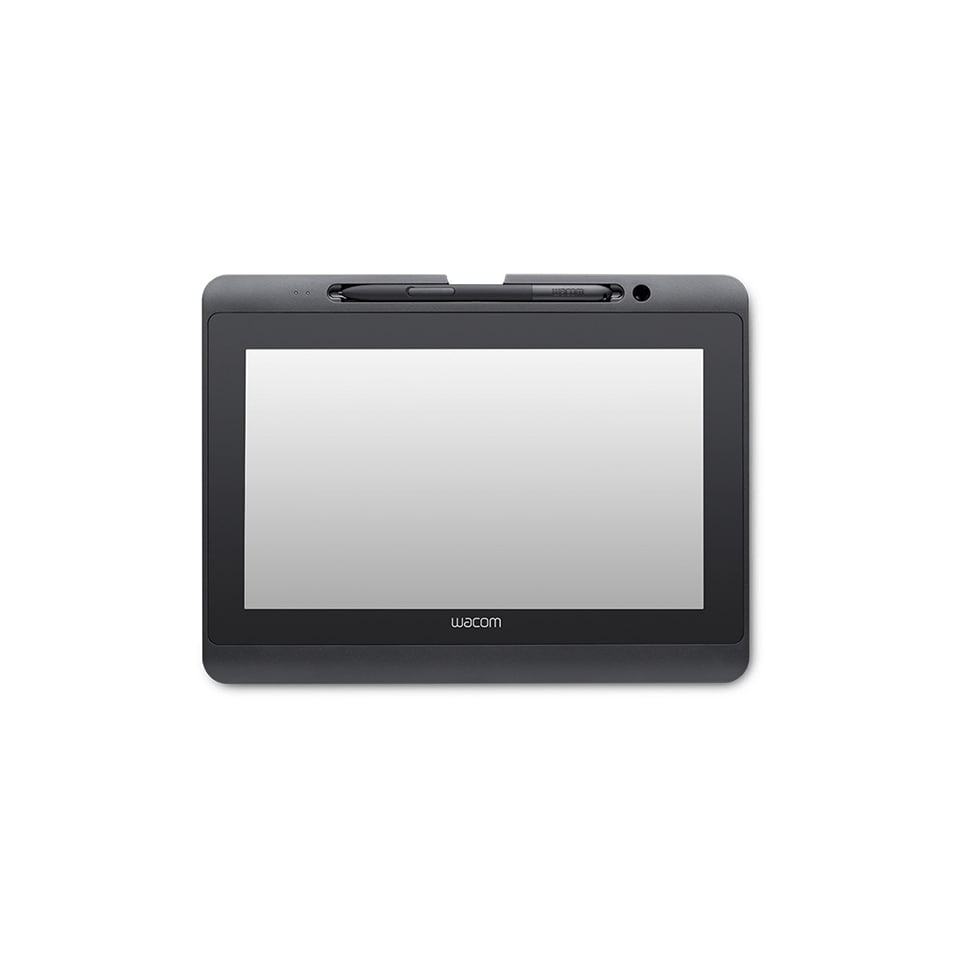

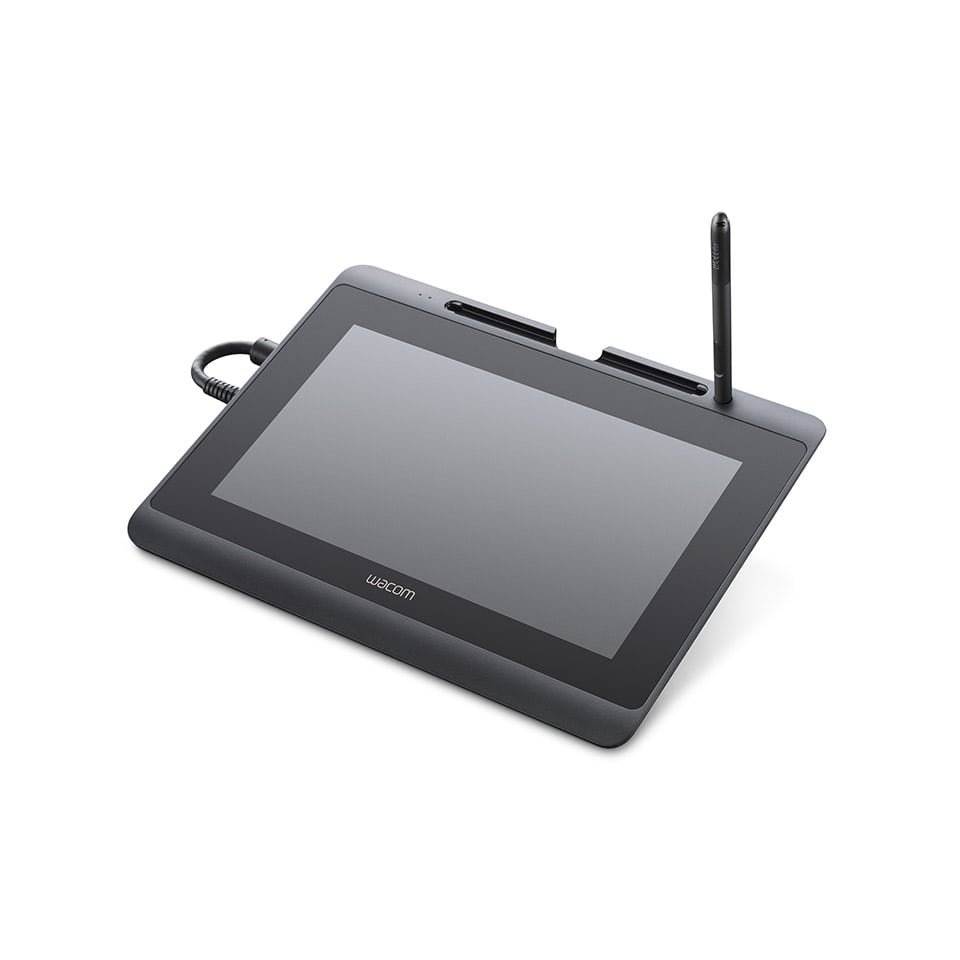

Pen Display DTH-1152

36 sold



  • Superb ease-of-use: Easy navigation and support for common gestures via multi-touch functionality
  • Seamless integration: Usable with any system via the HDMI video interface
  • Flexible compatibility: Support for Citrix, VMWare, and Linux systems, as well as legacy VDI/RDS environments

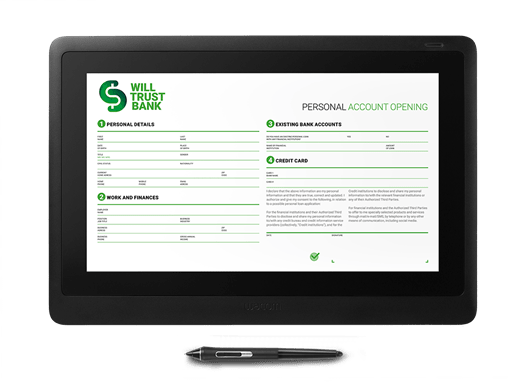

The DTH-1152 provides both pen and touch input in a compact pen display for convenience in reviewing, annotating and applying eSignatures to digital documents.

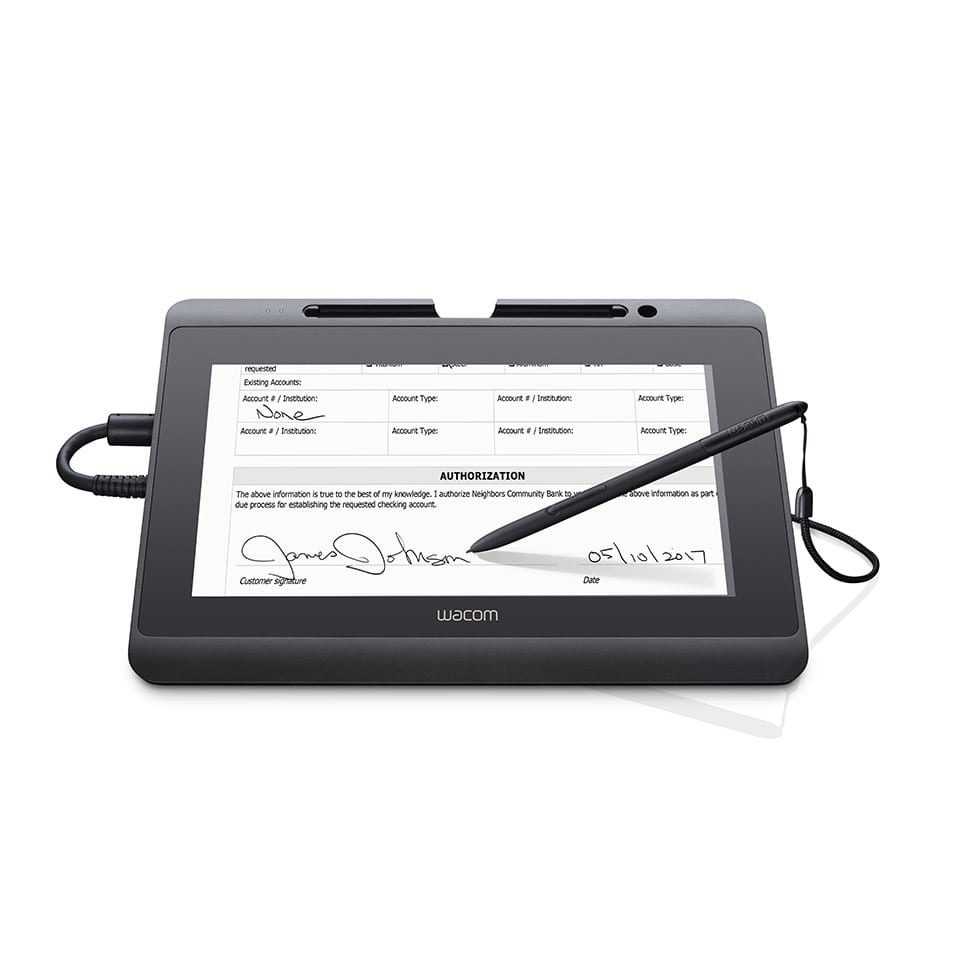

Users can write, draw, annotate, and sign electronic documents directly on the 10.1″ full HD LCD screen with a hardened surface that provides outstanding durability and a paper-like feel.

Pen Display DTH-1152
Pen Display DTH-1152

Key Features and Benefits

  • Optimal user comfort with the 10.1” color Full HD LCD panel that allows easy document viewing and signing, drawing and annotating directly on the screen
  • Intuitive input with multi-touch functionality for easy navigation and support for common gestures
  • Outstanding durability via the scratchresistant hardened cover glass that provides easier viewing in different lighting conditions and a paper-like feel
  • Flexible installation via the HDMI video interface that allows seamless integration into any system including Citrix, VMware or Linux, and support for VCP (Virtual Com Port) connection for use in legacy VDI/RDS environments

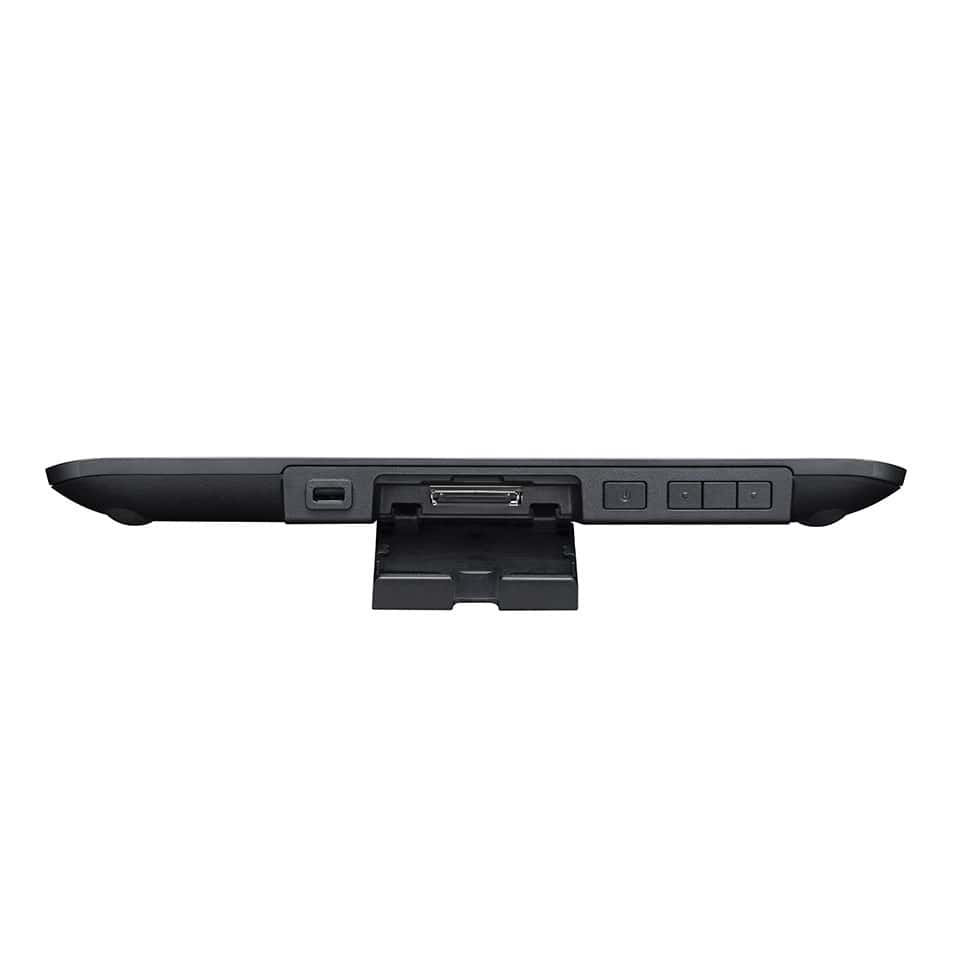

  • Enhanced stability with cable protection that prevents accidental disconnections

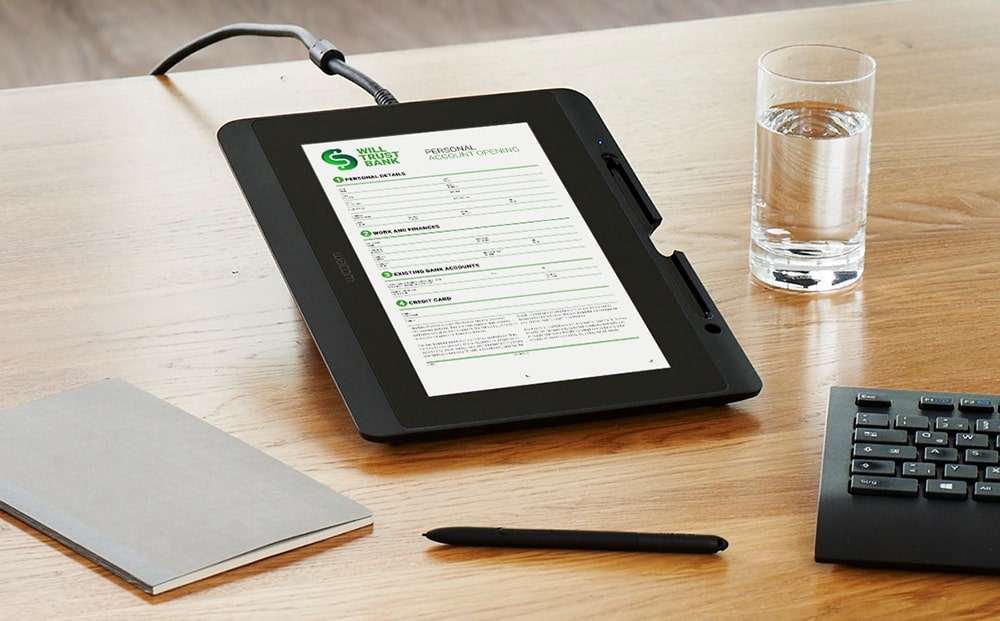

  • Convenient usage with landscape and portrait mode, and built-in VESA mounting holes also provide mounting options and the use of third-party stands

General Specifications

  • Dimensions Dimensions (W x H x D, excluding stand) 11 x 8.26 x 0.62 inches / 279.8 x 209.9 x 16 mm
  • Weight Weight (including stand) 2.2 lbs / 1.0 kg

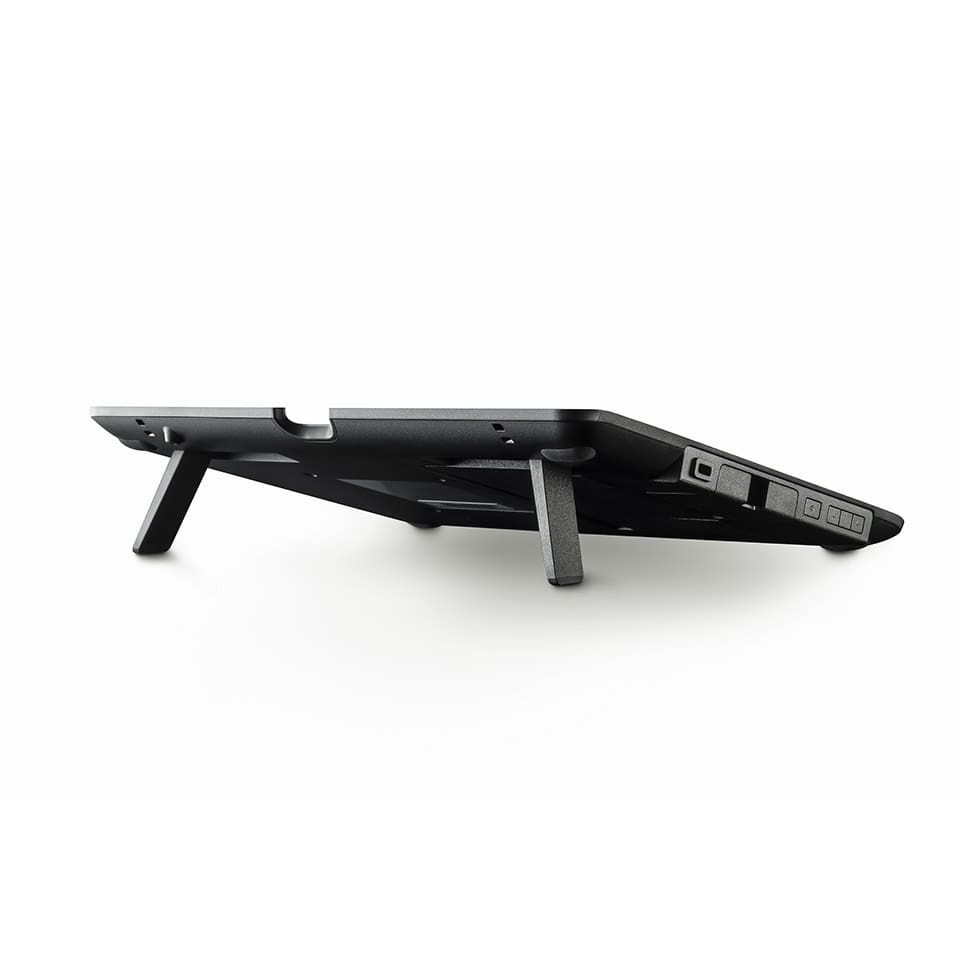

  • Main body colorStand inclination 15° integrated stand
  • Power supplyPower supply AC 100 ~ 240 V, 50/60 Hz
  • Power consumptionPower consumption 10 W (full loading), Power Save mode: 0.5 W or lower, Power OFF mode: 0.5 W or lower
  • Communication interfaceCommunication interface USB 2.0
  • Programmable buttonsProgrammable buttons NA
  • Supported operating systemsSupported operating systems Windows 10 / 8.1 / 7 (32-bit, 64-bit),
    Mac OSX 10.11 or later

Tablet and Pen

  • Reading Technology Technology Electromagenetic Resonance (EMR)
  • Screen dimensions Screen dimensions 10.1“ diagonal (8.79 x 4.94 inches / 223.2 x 125.6 mm)
  • Coordinate resolution Coordinate resolution 2540 lpi
  • Coordinate accuracy Coordinate accuracy ±0.02 inches / ±0.5 mm (center)
  • Report rate Report rate 200 points per second
  • Pressure levels Pressure levels 1024
  • Encryption Encryption AES 256 / RSA 2048
  • Reading height Reading height 0.2 inches / 5 mm (center)

LCD Screen

  • Display Type LCD Panel Type AHVA
  • Touch Input Touch Input Yes
  • Cover glass surfaceCover glass surface Tempered AG etched glass
  • Aspect ratio Aspect ratio 16:9
  • Native resolution Native resolution 1920 x 1080 pixels
  • Video inputVideo input HDMI
  • Viewing anglesViewing angles 170° / 170°°
  • ColoursColours 16.7M colors
  • LuminanceLuminance (brightness) 0.13 cd/in² / 200 cd/m² (typical)
  • Contrast ratioContrast ratio 1000:1 (typical)
  • Response timeResponse time 25 ms (typical)


  • Pen storage Pen storage Integrated pen compartment, pen stand
  • Security lock slot Security lock slot Yes, Kensington
  • Mounting system Mounting system VESA 2.95 inches / 75 mm
  • Signature software compatability Signature software compatability Compatible with signature / eSign software and Wacom sign pro PDF; C++, .NET and Java SDK/API available for developers
  • Drivers Drivers Wacom driver required, SDK/API available for developers

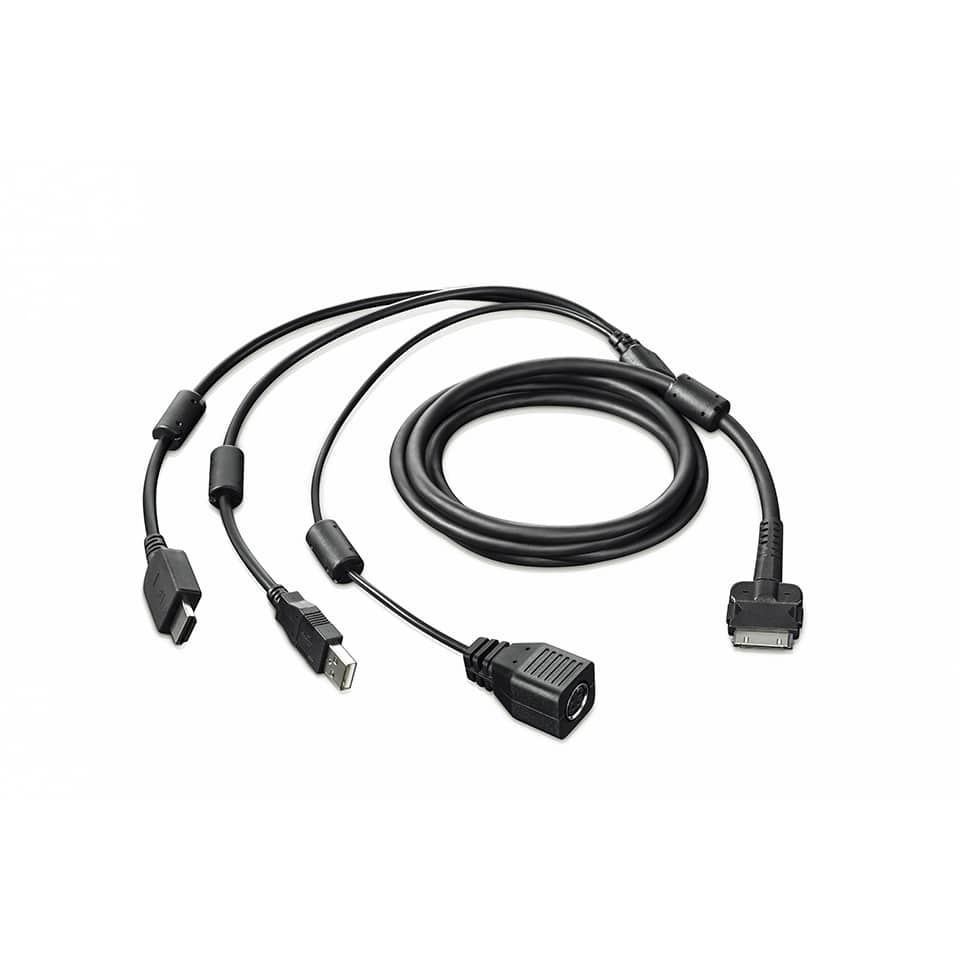

  • Package content Package content DTH-1152, Pen, Pen tether, Extra pen nibs Nib removal tool, 3-in-1 cable, AC power adapter, Power cable, Quick Start Guide, IPI
Pen Display DTH-1152

Additional Information

Weight1000 g
Dimensions16 × 279.8 × 209.9 mm
